| Cat® Shears |
|
|
|
Mechanical Scrap Shears
The excavator bucket cylinder powers the straight mechanical stick mounted shears. This eliminates the cost of a dedicated cylinder and housing as well as the hydraulic installation kit required to operate hydro-mechanical shears.
For more info on Mechanical Scrap Shears
click here.
|
Model |
S115 |
S128 |
|
Weight |
3,530 lb / 1600 kg |
5,290 lb / 2400 kg |
|
Length |
102.4" / 2600 mm | 116.1" / 2950 mm |
Height | 55.9" / 1420 mm | 65.7" / 1670 mm |
Width | 12.0" / 305 mm | 14.8" / 375 mm |
Jaw Opening min / max | 13.3" / 16.5"
340 mm / 420 mm | 15.7" / 19.7"
400 mm / 500 mm |
Jaw depth | 18.1" / 460 mm | 22.4" / 570 mm |
Forces at Throat min / max | 200 st / 365 st
1750 kN / 3250 kN | 340 st / 505 st
3000 kN / 4500 kN |
Forces Primary blade center | 105 st / 190 st
920 kN / 1700 kN | 185 st / 270 st
1650 kN / 2400 kN |
Ecavator size min / max | 33,000 lb / 66,000 lb
15,000 kg / 30,000 kg | 55,000 lb / 88,000 lb
25,000 kg / 40,000 kg |
|
 |
|

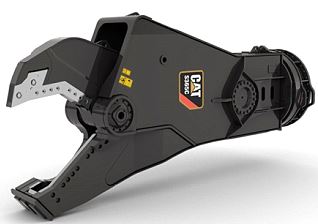

Hydraulic Scrap Shears
With the introduction of the Cat S305, S320, S325, S340, S365 and S390 hydraulic shears, Caterpillar offers a line of steel cutting shears that meets your requirements in scrap recycling as well as primary demolition. These shears are versatile tools well suited for stick or boom mounting on Caterpillar hydraulic excavators. Shears are widely used for demo lishing steel structures, cutting up cars, trucks and farm machinery, railroad cars, rubber tires and reinforced concrete structures. Shears can also be used for preparing long structural beams and bulk scrap for further processing on stationary shears. For more info on Hydraulic Scrap Shears
click here.
|
Model |
S305 |
S320 |
S325 |
S340 |
S365 |
S390 |
|
Weight |
1,279 lb
580 kg |
4,741 lb
2150 kg | 6,615 lb
3000 kg | 9,371 lb
4250 kg | 14,333 lb
6500 kg | 21,389 lb
9700 kg |
Length | 74.5"
1886 mm | 119.8"
3044 mm | 135.9"
3453 mm | 153.5"
3900 mm | 181.8"
4617 mm | 210.6"
5348 mm |
Height | 26"
660 mm | 45.6"
1183 mm | 54.1"
1374 mm | 59.3"
1506 mm | 71.3"
1810 mm | 83.3"
2117 mm |
Width | 15.4"
390 mm | 31.5"
800 mm | 31.5"
800 mm | 39.8"
1010 mm | 46.5"
1180 mm | 55.1"
1400 mm |
Jaw width (fixed) | 9.1"
230 mm | 13.2"
335 mm | 14.8"
375 mm | 17.3"
440 mm | 20.1"
510 mm | 24.4"
620 mm |
Jaw width (moving) | 2.4"
60 mm | 3.5"
90 mm | 3.9"
100 mm | 4.7"
120 mm | 5.9"
150 mm | 7.1"
180 mm |
Jaw opening | 9.4"
240 mm | 15.4"
390 mm | 19.3"
490 mm | 22.8"
580 mm | 29.1"
740 mm | 33.9
860 mm |
Jaw depth | 11.4"
290 mm | 17.3"
440 mm | 22.4"
570 mm | 26.8"
680 mm | 32.7"
830 mm | 40.2"
1020 mm |
Shear forces tip | 44 st
400 kN | 99 st
900 kN | 138 st
1250 kN | 171 st
1550 kN | 215 st
1950 kN | 275 st
2500 kN |
Shear forces
primary blade center | 99 st
900 kN | 242 st
2200 kN | 352 st
3200 kN | 418 st
3800 kN | 528 st
4800 kN | 666 st
6050 kN |
Shear forces at throat | 193 st
1750 kN | 418 st
3800 kN | 649 st
5900 kN | 803 st
7300 kN | 1084 st
9850 kN | 1386 st
12600 kN |
|
|
|
| |
