Hydraulic Trenchers
|
Model |
Chain Type |
Cutting Width |
All Related Equipment |
|
T9 [166-0767] |
1219 mm (48 in) |
Standard |
216, 226, 228, 232, 236, 242, 246, 248, 252, 262
|
|
T9 [222-8619] |
1219 mm (48 in) |
No Chain |
216, 226, 228, 232, 236, 242, 246, 248, 252, 262 |
| T9 [222-7910] | 1219 mm (48 in) | Standard |
216, 226, 228, 232, 236, 242, 246, 248, 252, 262 |
|
T9 [222-8556] |
1219 mm (48 in) |
Combination |
216, 226, 228, 232, 236, 242, 246, 248, 252, 262 |
|
T9 [222-8561] |
1219 mm (48 in) |
Rockfrost |
216, 226, 228, 232, 236, 242, 246, 248, 252, 262 |
| T15 [179-6314] | 1524 mm (60 in) | Standard |
228, 248 |
| T15 [222-7911] | 1524 mm (60 in) | Standard | 228, 248 |
| T15 [222-8557] | 1524 mm (60 in) | Combination | 228, 248 |
| T15 [222-8620] | 1524 mm (60 in) | No Chain |
228, 248 |
Manual Trenchers
|
Model |
Chain Type |
Cutting Width |
All Related Equipment |
|
T9 [166-0765] |
1219 mm (48 in) |
Standard |
216, 226, 228, 232, 236, 242, 246, 248, 252, 262 |
| T9 [222-7909] | 1219 mm (48 in) | Standard |
216, 226, 228, 232, 236, 242, 246, 248, 252, 262 |
| T9 [222-8554] | 1219 mm (48 in) | Combination |
216, 226, 228, 232, 236, 242, 246, 248, 252, 262 |
| T9 [222-8559] | 1219 mm (48 in) | Rockfrost |
216, 226, 228, 232, 236, 242, 246, 248, 252, 262 |
| T9 [222-8617] | 1219 mm (48 in) | No Chain |
216, 226, 228, 232, 236, 242, 246, 248, 252, 262 |

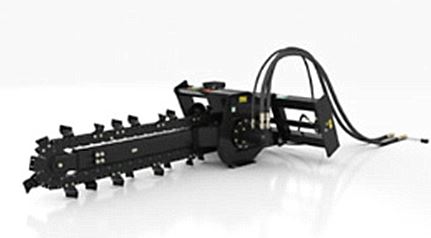

Standard Flow Trencher
The direct drive T9 utilizes standard flow auxiliary hydraulics.
High Flow Trencher
The direct drive T15 utilizes high flow auxiliary hydraulics.
Performance
Cat Trenchers provide the right balance of chain speed and torque for
maximum productivity in a broad range of soil types. Trenchers are designed
to operate with the loader traveling in reverse with the boom angled down
between 45 and 65 degrees from the horizontal position for maximum performance
in general trenching applications.
Drive System
Direct drive
system features a variable speed, bidirectional, gerotor style motor that delivers
optimal chain speed, chain pull and torque for maximum trenching performance.
Hard-Faced Teeth
Hard-faced,
medium carbon alloy steel cupped teeth are standard for long life in many soil
conditions. Teeth at every other station provide optimum trenching performance
in most soil types. Optional rock teeth are available for aggressive trenching.
Formed Skid Shoe
A formed
skid shoe acts as a pivot point and maintains proper spoil auger orientation.
Easy entry/exit from machine
Three convenient, heavy-duty, deep skid-resistant steps (one located at the right
rear and two on the top of the main structure) optimize operator entry and
exit from the machine.
Cat Hose and Couplings
Caterpillar XT and medium pressure hose, couplings and O-ring face seals provide
superior leak free performance and reliability. All exposed hoses are wrapped
with nylon woven Cordura sleeving for added operator protection.
|
