ROUGH TERRAIN CRANES

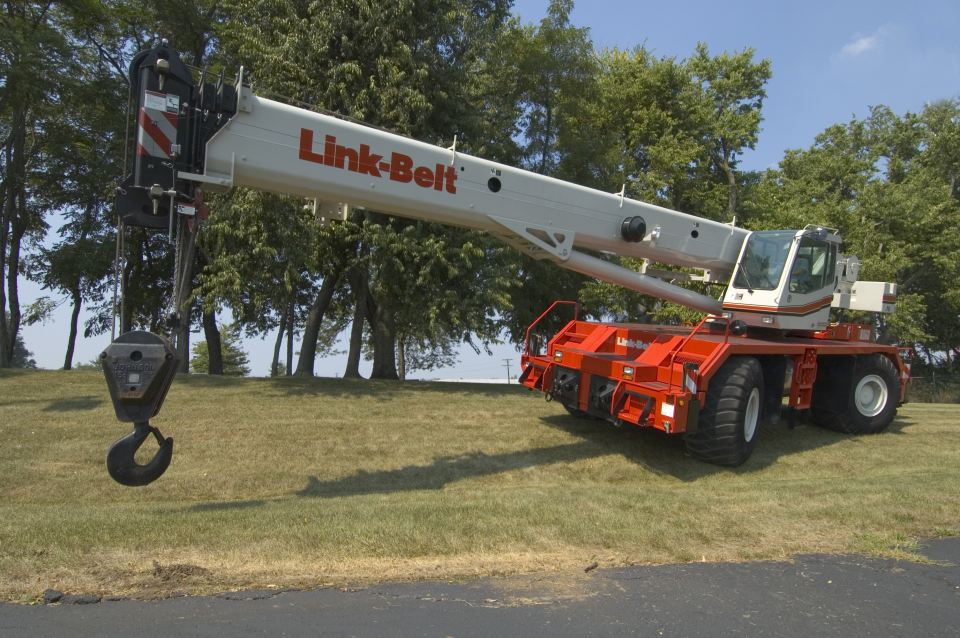

Link-Belt has made significant improvements in their line of rough terrain cranes with the introduction of the RTC-8030II series. These machines feature Link-Belt's revolutionary CALC outrigger system, giving the operator three options for outrigger positions: full extension, when the job site allows, intermediate and retracted as dictated by available space. A Metri-Pack wiring system has also become standard on the RTC machines. Each wire and connector in the system is sealed with silicon rubber to help prevent corrosion and consequently costly machine downtime. In addition, all wires have an automotive-type flame retardant, cross-linked polyethylene insulation, resulting in a higher heat resistant wiring system. Link-Belt manufactures a full line of RTC's in the 30-100 ton range.

Model	Capacity (Tons)	Boom Type & Length	Maximum Tip Height	Dimensions
RTC-8030 Series II	30	4-Section 29 ft to 91 ft 4 in	143 ft	H: 11 ft 1.31 in, W: 8 ft 6 in, L: 37 ft 1.38 in	Spec Sheet
RTC-8050 Series II	50	4-Section 35 ft 6 in to 110 ft	168 ft	H: 11 ft 11.75 in, W: 10 ft 3.5 in, L: 43 ft 9 in	Spec Sheet
RTC-8065 Series II	65	4-Section 38 ft to 115 ft	211 ft	H: 12 ft 2 in, W: 10 ft 7 in, L: 45 ft 6 in	Spec Sheet
RTC-8075	75	4-Section 41 ft to 127 ft	202 ft	H: 12 ft 10.75 in, W: 10 ft 10.5 in, L: 48 ft 9.5 in	Spec Sheet
RTC-8080 Series II	80	5-Section 38 ft to 140 ft	238 ft	H: 12 ft 6 in, W: 10 ft 9 in, L: 47 ft 10 in	Spec Sheet
RTC-8090 Series II	90	5-Section 38 ft to 140 ft	238 ft	H: 12 ft 6 in, W: 10 ft 9 in, L: 47 ft 10 in	Spec Sheet
RTC-80100 Series II	100	5-Section 40 ft to 150 ft	243 ft	H: 12 ft 2.5 in, W: 9 ft 11 in, L: 47 ft 10 in	Spec Sheet
RTC-80130	130	5-Section 41.4 ft to 162 ft	278 ft	H: 12' 5", W: 9' 10", L: 48' 10"	Spec Sheet


Link-Belt Crane Literature
Crane Sales, Lease & Rental Contacts Crane Sales and Rentals SE Florida George McCoach Kelly Tractor Co - West Palm Beach Branch 5460 Okeechobee Boulevard West Palm Beach , FL 33417 Phone: 305-613-1571 E-mail: george_mccoach@kellytractor.com Crane Sales and Rental NE Florida Hugo Verez "Se Habla Español" Kelly Tractor Co - Orlando Branch 17300 E. Colonial Drive Orlando , FL 32820 Phone: 407-399-1248 E-mail: hugo_verez@kellytractor.com Cranes Sales and Rental West Coast Florida William Hershner Kelly Tractor Co - Ft. Myers Branch 9651 Kelly Tractor Drive Fort Myers , FL 33905 Phone: 941-350-9023 E-mail: william_hershner@kellytractor.com Crane Sales Coordinator Julio Rivas "Se Habla Espanol" Kelly Tractor Co - West Palm Beach Branch 5460 Okeechobee Boulevard West Palm Beach , FL 33417 Phone: 561-683-2015 x177 E-mail: julio_rivas@kellytractor.com
