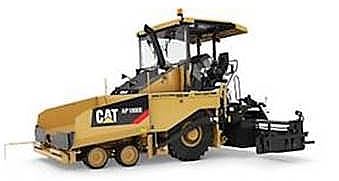

ASPHALT PAVERS
Wheel-equipped asphalt pavers offer superior jobsite mobility for applications that
require a lot of paver movement and relocation. High horsepower and excellent mobility
help operators place the mat where they want it. Optional bogey wheel assist enhances
rimpull to the front and/or rear bogeys, providing increased traction. All models
are equipped with independent feeder systems designed to reduce segregation and
handwork. Electronic self-diagnostics on the propel and feeder systems maximize
maintenance efficiency and reduce machine downtime.
Track-equipped asphalt pavers offer superior traction for jobs that require wide
pulls or large mix-delivery vehicles. High horsepower and exceptional traction keep
everything smooth and consistent, helping to produce a mat without segregation or
defects. Models are available with steel tracks for dependable use and easy maintenance,
or rubber Mobil-trac&tm; systems for extra mobility and smooth, quiet operation.
All models are equipped with independent feeder systems designed to reduce segregation
and handwork. Electronic self-diagnostics on the propel and feeder systems maximize
maintenance efficiency and reduce machine downtime.
Cat asphalt screeds feature hydraulic variable-width adjustment and electrically
heated screed plates. They are available in rear-extender and front-extender models.
|
|
|
Wheel Asphalt Pavers
Model | Gross Power | Engine Model | Paving Width |
| AP600D | 173.5 hp | Cat C6.6 Engine with ACERT Technology | 8 ft |
|
Barber-Greene BG600D
| 173.5 hp | Cat C6.6 Engine with ACERT Technology | 8 ft |
|
AP-1000D
| 142 hp | Cat C4.4 Engine with ACERT Technology | 8 ft |
|
Barber-Greene BG260D
| 224 hp | Caterpillar C7 with ACERT Technology | 10 ft |
|
AP-650B
| 224 hp | Caterpillar C7 with ACERT Technology | 10 ft |
|
|
|
|
|
Track Asphalt Pavers
Model | Engine Model | Gross Power | Net Power (EEC 80/1269) |
| AP-1055D | Cat® C7 | 224 hp | 223 hp |
|
AP555E
| Cat C4.4 Engine with ACERT Technology | 142 hp | |
|
AP655D
| Cat C6.6 Engine with ACERT Technology | 174 hp | 163.5 hp |
|
Barber-Greene BG-2455D
| Cat C7 Engine with ACERT Technology | 224 hp | 223 hp |
|
Barber-Greene BG655D
| Cat C6.6 Engine with ACERT Technology | 174 hp | 163.5 hp |
|
|
|
Screeds
Model | Maximum Paving Width | Standard Paving Width | Minimum Paving Width |
|
AS2252C
| 18.4 ft | 8 ft | 6.1 ft |
| AS2301 | 24 ft | 10 ft | 8 ft |
|
AS2302
| 18 ft | 10 ft | 8 ft |
|
AS3251C
| 15.5 ft | 8 ft | 6 ft |
|
Extend-A-Mat 10-20B
| 24.16 ft | 10 ft | 8 ftp |
|
|
