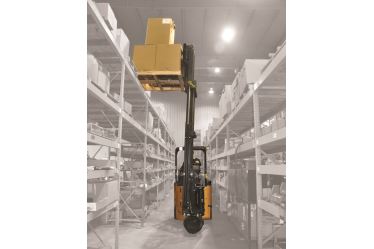

Bendi Electric Forklifts
The Bendi Electric Narrow aisle trucks are available with three stage tilting masts, with lift heights to 36 ft (11M). Quad masts are also available to 26 ft (7.29M), which gives the Bendi high stacking Landolllity, while allowing the low mast height to work in highway trailers or travel through low doorways. Electric capacities range from 3,000 lbs to 5,500 lbs.
|
|
| |
|
Maximum Triple Mast Lift |
Maximum Quad Mast Lift |
Recommended Storage Aisle Size |
|
| Model |
Basic Capacity (lbs/kg) |
Height Available (in/M) |
Height Availble (in/M) |
with 48" x 40" load (in/M) |
|
| B3/30 AC |
3000/1363 |
360/9.14 |
NA |
72/1800 |
|
| B30AC |
3000/1363 |
276/7.01 |
312/7.92 |
78/1981 |
|
| B40AC |
4000/1818 |
360/9.14 |
312/7.92 |
78/1981 |
|
| B40VAC |
4000/1818 |
360/9.14 |
312/7.92 |
72/1870 |
|
| B55 AC |
5500/2500 |
360/9.14 |
315/8 |
84/2.13 |
|
| B55 AC HL |
5500/2500 |
472/12 |
NA |
84/2.13 |
|

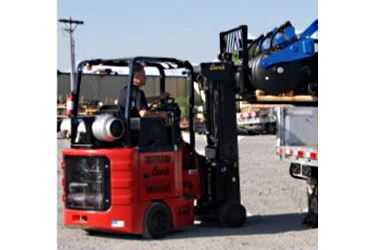

The Bendi i4 – LP Gas Powered
Almost everything that makes the battery-powered Bendi the right choice for so many applications applies equally to the Bendi IC. Both are equally at home on the loading dock or in the warehouse. Both can go from trailer to plant floor to narrow isle storage without staging. Both navigate narrow aisles that allow Bendi operators to move safely into tight spots that other forklifts cannot reach. The main difference is that our LP-Powered Bendi can be fueled in less than 5 minutes.
|
|
| |
|
Maximum Triple Mast Lift |
Maximum Quad Mast Lift |
Recommended Storage Aisle Size |
|
| Model |
Basic Capacity (lbs/kg) |
Height Available (in/M) |
Height Availble (in/M) |
with 48" x 40" load (in/M) |
|
| B40i5 |
4000/1818 |
312/7.92 |
312/7.92 |
78/1981 |
|

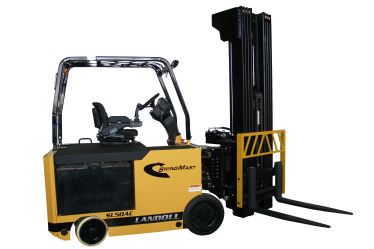

Landoll Drexel SwingMast
Nothing else measures up to the Landoll Drexel SwingMAST lift trucks> Their unique design enables drivers to turn only the mast assembly, not the entire truck. Aisles as narrow as 4 ½ ft (1.37m) allowing you to store more than ever, can be easily obtained. The versatile Landoll Drexel SwingMast gives you four trucks in one; performing like a conventional counterbalanced truck, a reach truck, a side loader and a turret truck. Models available in capacities from 3,000 lbs (1363 kg) to 12,000 pounds (5454 kg), with 3 or 4 stage masts with lift Heights to 30 feet (9.14M).
|
|
| |
Basic Capacity |
|
Maximum Triple
Mast Lift |
Maximum Quad
Mast Lift |
Recommended Storage
Aisle Size |
| Model |
(lbs/kg) |
Power Source |
Height Available (in/M) |
Height Availble (in/M) |
with 48" x 40" load (in/M) |
| SLT-30AC |
3000/1363 |
Electric |
272/6.90 |
312/7.92 |
56/1420 |
| SLT-35AC |
3500/1590 |
Electric |
272/6.90 |
312/7.92 |
56/1420 |
| SL-30 |
3000/1367 |
Electric |
272/6.91 |
312/7.92 |
60/1500 |
| SL-40 |
4000/1818 |
Electric |
360/9.14 |
312/7.92 |
60/1500 |
| SL-50 |
5000/2272 |
Electric |
374/9.5 |
315/8.00 |
60/1500 |
| SL-60 |
6000/2727 |
Electric |
289/7.34 |
NA |
66/1676 |
| SL-80 |
8000/3636 |
Electric |
281/7.14 |
NA |
72/1829 |
| SL-120 |
12000/5455 |
Electric |
243/6.17 |
NA |
78/1981 |
| E-60-SL |
6000/2727 |
LP Gas or Diesel |
240/6.10 |
NA |
72/1829 |
Drexel EX
(Explosion Proof) |
|
|
|
|
|
| FL-40-EX |
4000/1818 |
Electric |
236/5.99 |
|
144/3658 |
| FL-60-EX |
6000/2727 |
Electric |
234/5.94 |
|
144/3658 |

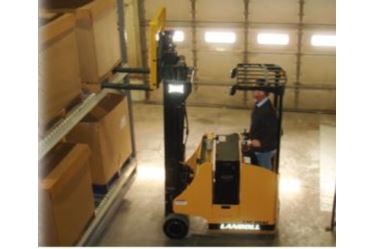

Landoll Stand-Up Compact
The LSC is a 3 wheel stand-up ride, compact, rear entry front loader, with a single poly rear drive/steer and poly load tires. It’s a short turning radius, high visibility mast and compact design makes stacking and dock work easy and efficient. The low step height provides easy access on and off the truck for order picking and load checking.
|
|
Compact Electric Lift Truck
| Model |
|
|
LSC25 |
LSC30 |
|
| Capacity at 24" (600mm) Load Center |
lb/kg |
|
2,500/1,136 |
3,000/1,364 |
|
| Truck Weight with Battery |
lbs/kg |
|
6,750/3,068 |
6,600/3,000 |
|
| Travel Speed |
Loaded |
mph/kph |
6/9.7 |
6/9.7 |
|
| |
Unloaded |
mph/kph |
7/11.3 |
7/11.3 |
|
| Wheelbase - Mast Vertical |
in/cm |
|
34.6/88 |
40.6/103 |
|
| Fork Length |
in/cm |
|
42/107 |
42/107 |
|
| Operator Floor Height |
in/cm |
|
10.5/27 |
10.5/27 |
|
| Gradeability Loaded/Unloaded |
% |
|
7/12 |
7/12 |
|
|
