Aisle Master
AC ELECTRIC AISLE MASTER
 |
Mast Range -164” to 591”
|
|
|
Gradeability (Laden) -12%
|
|
|
Overhead Guard - 89.5”
|
|
|
Gradeability (Unladen) - 15%
|
|
|
Capacity - 3,300Ibs to 6,600Ibs
|
|
|
Battery Capacity Range - 620 Ah to 930 Ah
|
|
|
Ground Speed* - 10mph
|
|
|
Standard Colour* -Yellow and Grey
|
|
|
Lift Speed (Unladen) - 98.5 ft/min
|
|
|
Truck Weight (with battery) - 14,100Ibs to 15,650Ibs
|
|
|
Lift Speed (Laden) - 78.75 ft/min
|
|
|
Truck weight (no battery) - 11,350Ibs to 12,145Ibs
|
|
|
Front tire size* - 16 ¼” X 7”
|
|
|
Battery Voltage - 48v
|
|
|
Rear tire size - 18” X 7”/9”
|
|
|
Standard Seat* - Grammer
|
|

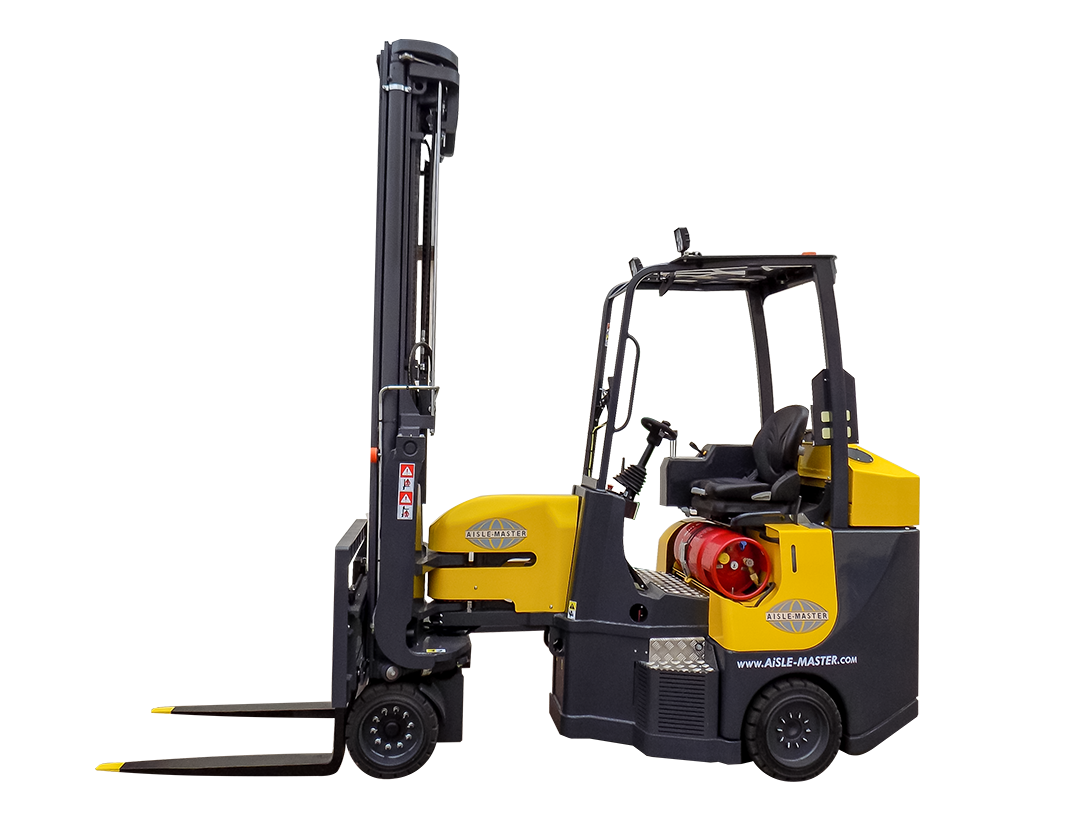

LPG Aisle Master
|
|
Mast Range - 169” to 488” |
|
|
Front tire size* - 16” x 7” |
|
|
Overhead Guard - 91” |
|
|
Rear tire size* - 18” X 8” |
|
|
Capacity - 4,400Ibs |
|
|
Gradeability (Laden) - 15% |
|
|
Ground Speed* - 7 mph |
|
|
Gradeability (Unladen) - 15% |
|
|
Lift Speed (Unladen) - 98.5 ft/min |
|
|
Engine - 2.5L Kubota V2403 |
|
|
Lift Speed (Laden) - 78.75 ft/min |
|
|
Weight of Truck - 11,350Ibs to 12,145Ibs |
|
AISLE MASTER ORDER PICKER
|
|
Mast Range -169” to 476”
|
|
|
Step Height - 11”
|
|
|
Fork Carriage Width - 39”
|
|
|
Mast Tilt (Back/Forward) - 3/1 Degrees
|
|
|
Capacity - 4,400Ibs
|
|
|
Overall Length - 109”
|
|
|
Ground Speed - 5mph
|
|
|
Ground Clearance - 3 ½”
|
|
|
Lift Speed Laden/Unladen - 1.3 / 1.6 ft/s
|
|
|
Overhead Guard Height - 90”
|
|
|
Front Tire Size - 16 ¼” X 7”
|
|
|
Chassis Width – Rear - 55”
|
|
|
Rear Tire Size - 18” X 9”
|
|
|
Chassis Width – Front - 39”
|
|
|
Gradeability - 12%/15%
|
|
|
Load Centre - 24”
|
|
|
Battery Voltage 48v
|
|
|
Wheel Base - 68 ¼”
|
|
|
Truck Weight Less Battery - 13,563Ibs
|
|

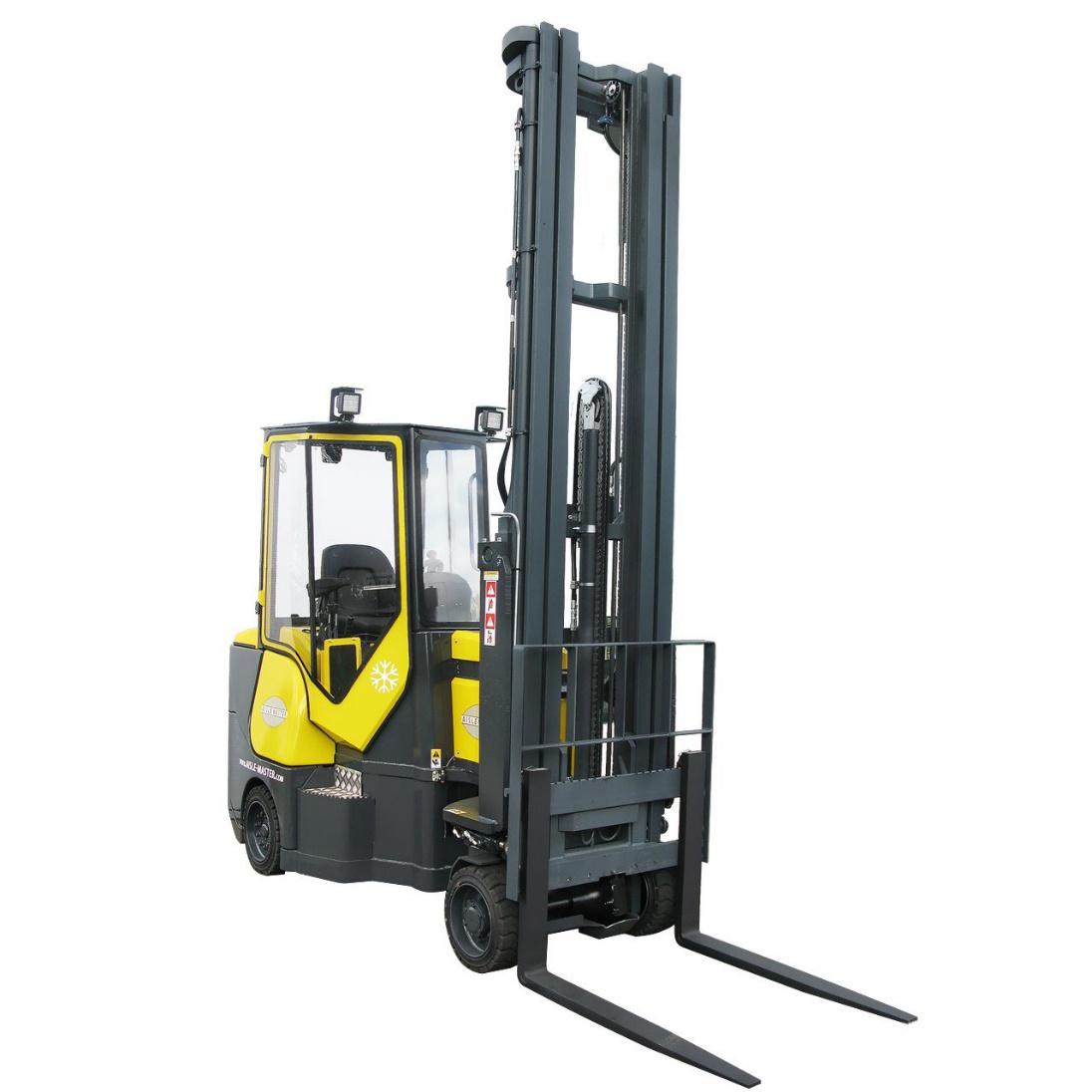

AISLE MASTER COLD STORAGE
|
|
Heated cab windows eliminate the build-up of condensation when driving between different temperatures in a building
|
|
|
Allocated areas in the cab enable the use of a bar code scanner
|
|
|
Low energy LED work lights as standard
|
|

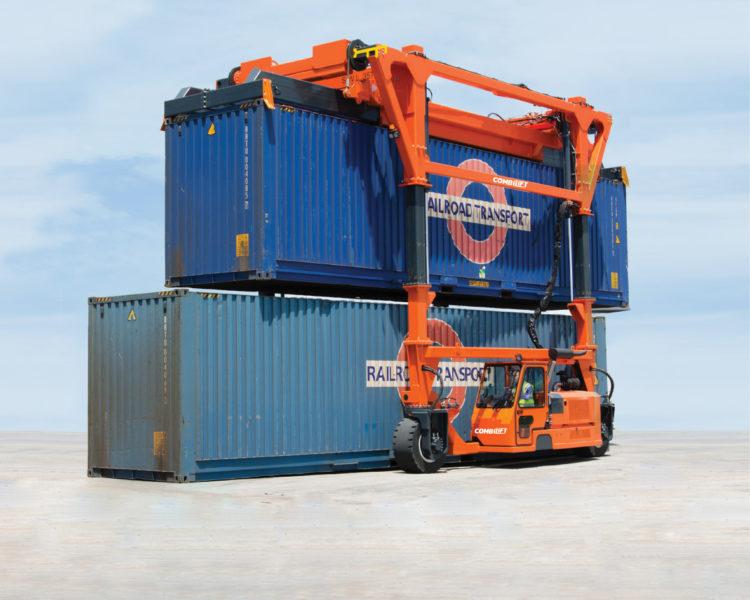

COMBI LIFT SC3-TA TELESCOPIC TOPLIFT STRADDLE CARRIER
|
High volume, Straddle carriers for the loading and unloading of containers with telescopic function giving the ability to double stack containers. The Top lift attachment enables the handling of over 12 containers per hour. |
|
✔ Effortless double stacking of containers |
|
✔ Maneuver and set down under low doorwaystd>
|
|
✔ 12 – 15 containers per hour |
|
✔ No brake maintenance |
|
✔ 360-degree vision when load is lifted |
|
✔ Low ground pressure |
|
✔ Travels in and out of warehouse with ease |
|
|
|
|
|
